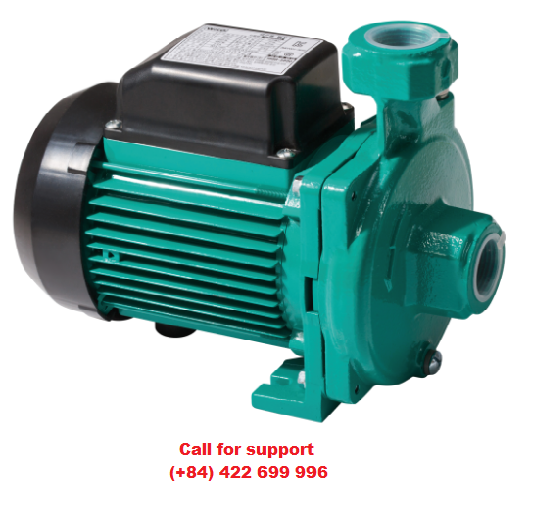

  • Wilo-PU

Wilo-PU

  • - Lưu lượng max: 16 m3/h
  • - Cột áp max: 19 m
  • - Nhiệt độ chất lỏng: 40 °C

    • Giá: Liên hệ
    Design
    Self-priming centrifugal pump
    Application
    Pressure boosting in agriculture and the industry
    Type key
    Example: PUN-250E
    PU Centrifugal pump
    N Versions
    N: not self-priming
    -S: aggressive media
    25 Rated power (25*10 = 250 W)
    0 Series number
    E 50 Hz, 220 V, single phase
    Special features/product advantages
    Heavy-duty designGood self-priming capacityThermal motor protection
    Technical data
    Mains connection 1~220 V, 50 HzMax. operating pressure: 3 barMax. fluid temperature: +40 °CProtection class 1~: IP X2; IPX4 (depending on type)Connections on suction and pressure side: depending on typeIntegrated cable for pumps under 1000 W
