  • Wilo-Jet WJ

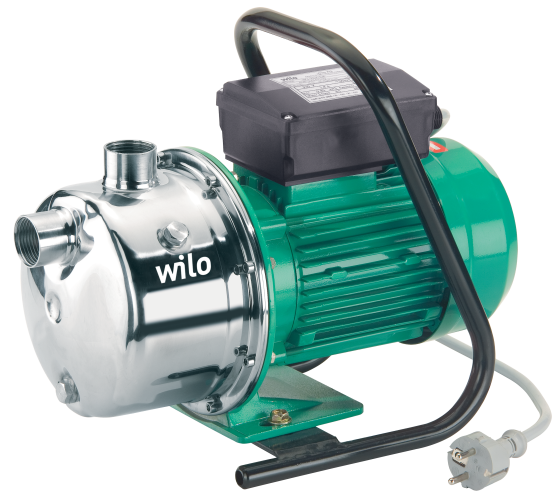

Wilo-Jet WJ

  • - Lưu lượng max: 5 m3/h
  • - Cột áp max: 50 m
  • - Nhiệt độ chất lỏng: +5 °C to +35 °C

    • Giá: Liên hệ
    Design
    Self-priming multistage centrifugal pumps
    Application
    Pumping water from wellsFilling, pumping empty, transferring by pumping, irrigation and sprinklingAs emergency pump for overflows
    Type key
    Example: WJ-203-X-EM
    WJ Wilo jet pumps
    2 Nominal flow rate Q in m³/h at optimum efficiency
    03 Index for pump pressure
    Version 03 with higher pressure than version 02
    (no indication of number of impellers!)
    X Version without carrying frame
    [Space] Portable version with carrying frame
    EM Single-phase current, 1~230 V, 50 Hz
    DM Three-phase current, 3~230/400 V, 50 Hz
    Special features/product advantages
    User-friendly thanks to its light weight, compact size and practical carrying handleHigh supply guarantee due to hydraulic output, self-priming up to 8 m (also at a low flow rate)Robust stainless steel construction for durable operation, impeller, shaft and housing made of AISI 304
