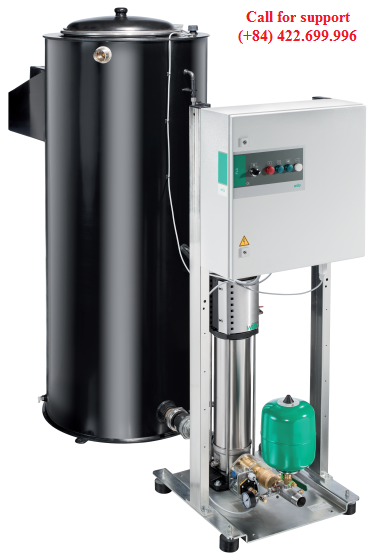

Wilo-FLA Compact-1 Helix V

Pressure boosting system for fire fighting in accordance with DIN 14462 for indirect connection.With a vertical, stainless steel high-pressure multistage centrifugal pump in glanded version and break tank.

Fully automatic water supply for fire extinguishing systems with type "F" fire hose reels in domestic, commercial and public buildings, hotels, hospitals, shopping centres and industrial systems

Example:	Wilo-FLA Compact–1 Helix V 1604 DS8
FLA	Fire extinguishing system
Compact	with break tank
1	Number of pumps
Helix V	Pump series
16	Rated volume flow [m3/h]
04	Number of pump stages
DS8	Pressure control up to 8 bar (pump type-dependent)

Compact system with 1-2 Helix V high-pressure multistage stainless steel centrifugal pumps, in accordance with DIN 1988 and DIN 14462 (redundancy for 2-pump systems)Complete system which is supplied with a round tank (approved for drinking water) connected directly to the suction connection of the pumpHydraulic power within the series of up to 18 m3/h for 100 m delivery headEasily adjustable and operationally reliable due to the FLA operating unit (TÜV tested)Preconfigured bypass flow, for pump protection with low flow
