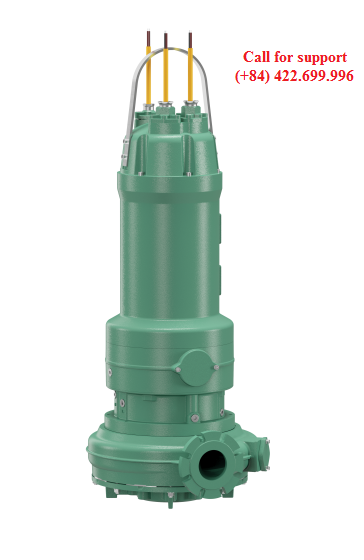

Wilo-EMU FA…T

Submersible sewage pump with and without active cooling system for pumping untreated sewage for continuous duty in the stationary and portable wet well installation, as well as for stationary dry well installation.

Pumping ofUntreated sewage with faeces and long-fibre componentsSewage containing faecesProcess water

Example:	Wilo-EMU FA 20.54T + FKT 27.1-4/28KEx
Hydraulics:	FA 20.54T
FA	Submersible sewage pump
20	x10 = nominal diameter of the pressure port, e.g. DN200
54	Performance indicator
T	SOLID-impeller  T = Shut SOLID impeller  G = semi-open SOLID impeller
Motor:	FKT 27.1-4/28K Ex
FKT	Motor version
27	Size
1	Distinctive number
4	Number of poles
28	x10 = package length [mm]
K	Seal version
Ex	Ex-approval
E3	High-efficiency motor in accordance with IE3 (derived from ISO 60034-30)

Patented SOLID hydraulics for reduction of clogging susceptibility, suitable for untreated sewageHigh hydraulic efficiencyReduction of vibrations through a flow-optimised impeller geometry for secure operation and long life cyclesEnergy-efficient IE3 motor technology available as an optionCeram coating and special material for protection against abrasion and corrosionSOLID hydraulics for reduction of clogging susceptibility, suitable for untreated sewageConsistently high efficiency due to adjustable impellersProcess reliability thanks to optimised impeller geometry for safe pumping of untreated sewage with long-fibre componentsEnergy-efficient IE3 motor technology available as an option
