  • Wilo-EMU FA (standard variant)

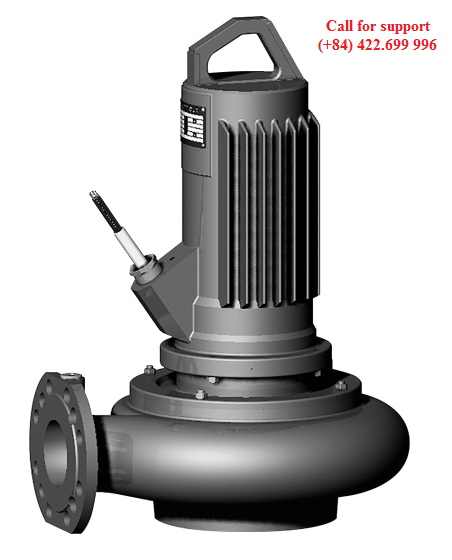

Wilo-EMU FA (standard variant)

  • - Lưu lượng max: 400 m3/h
  • - Cột áp max: 50 m
  • - Nhiệt độ chất lỏng: 3 to 40 °C

    • Giá: Liên hệ
    Design
    Submersible sewage pump without cooling system for continuous duty for stationary and portable wet well installation.
    Application
    Pumping ofSewage containing faecesPre-cleaned sewage without faeces and long-fibre componentsWastewater
    Type key
    E.g.: Wilo-EMU FA 08.22W-133 + T 12-2/11GEx
    FA Submersible sewage pump
    08 x10 = Nominal diameter pressure connection (e.g. DN80)
    22 Performance indicator
    W Impeller type:
    W = Vortex impeller
    E = Single-channel impeller
    133 Impeller diameter in mm
    T Dry motor without cooling system
    12 Size
    2 Number of poles
    11 x10 = package length in mm
    G Seal version
    H = Rotary shaft seal/mechanical seal
    G = Two separate mechanical seals
    Ex With ex-rating in accordance with ATEX
    Special features/product advantages
    Operationally reliable thanks to vortex hydraulics and single-channel hydraulic systems with large, free ball passageProcess reliability thanks to optional monitoring for the sealing chamber
