Wilo-EMU FA...RF

- Lưu lượng max: 20 l/s

- Cột áp max: 25 m

- Nhiệt độ chất lỏng: 3 ‐ 40 °C, higher temperatures on request

Giá: Liên hệ

Design

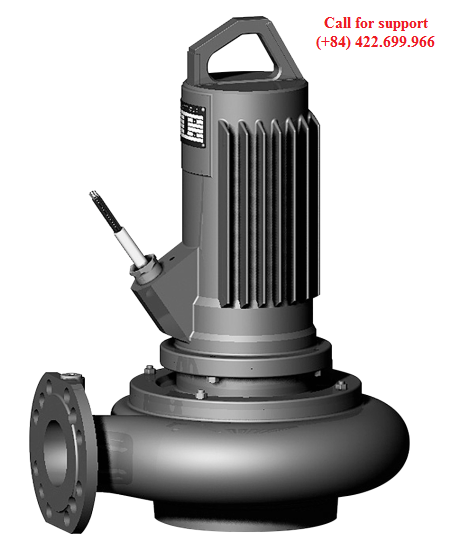

Submersible sewage pump made of cast stainless steel without cooling system for continuous duty in stationary and portable wet well installation.

Application

Pumping ofSewage containing faecesPre-cleaned sewage without faeces and long-fibre componentsProcess waterWastewater

Type key

Example:	Wilo-EMU FA 05.23RFW + T 12-2/11G Ex
Hydraulics:	FA 05.23RFW
FA	Submersible sewage pump
05	x10 = nominal diameter of the pressure port, e.g. DN50
23	Performance indicator
RF	Special cast stainless steel material
W	Type of impeller

Motor:	T 12-2/11G Ex
T	Motor version
12	Size
2	Number of poles
11	x10 = package length [mm]
G	Seal version
Ex	Ex-rated

Special features/product advantages

Sturdy version made completely of cast stainless steel 1.4581 for use in corrosive mediaProcess reliability thanks to comprehensive monitoring devicesLongitudinally watertight cable inletMinimal vibrations and long service life due to high-quality componentsCustomer-specific versions possible
