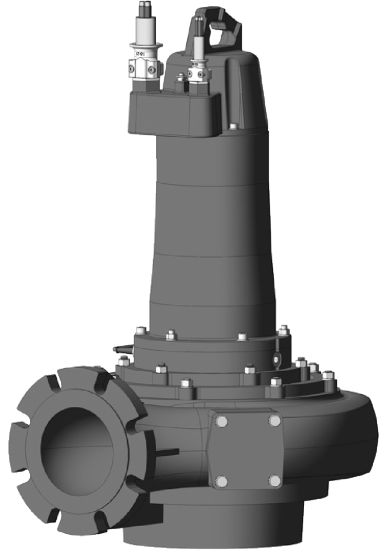

Wilo-EMU FA (customized)

Submersible sewage pump with and without active cooling system for continuous duty in the stationary and portable wet well installation, as well as for stationary dry well installation.

Pumping ofUntreated sewage with faeces and long-fibre componentsSewage containing faecesPre-cleaned sewage without faeces and long-fibre componentsProcess waterWastewater

Example:	Wilo-EMU FA 20.54E + FK 17.1-6/16KEx
Hydraulics:	FA 20.54E
FA	Submersible sewage pump
20	x10 = Nominal diameter pressure connection e.g. DN 200
54	Performance indicator
E	Impeller type:  W = Vortex impeller  E = Single-channel impeller  Z = Two-channel impeller  D = Three-channel impeller  V = Four-channel impeller
Motor:	FK 17.1-6/16KEx
FK	Motor type:  T = Dry motor without cooling system  FK, FKT, HC = Self-cooling motor with active cooling system
17.1	Size
6	Number of poles
16	x10 = package length in mm
K	Seal version  H = Rotary shaft seal/mechanical seal  G = Two separate mechanical seals  K = Block seal cartridge with two mechanical seals
Ex	Ex-rated

Can be customized exactly to your requirements. For reliable and efficient pumping of pre-cleaned sewage and untreated sewage.Versatile. Constant, optimal pumping of different media via various forms of impeller.Energy-efficient with optionally-available IE3 motor technologyProtected against abrasion and corrosion with Ceram coating and special materialsSuitable for immersed and non-immersed applications, also in continuous duty
