Wilo-EMU 10

- Lưu lượng max: 400 l/s

- Cột áp max: 530 m

- Nhiệt độ chất lỏng: fluid temperature (higher temperatures on request):NU 5... / NU 6… / NU 7… / NU 811 = 30 °CNU 801 / NU 9... / NU 12.. / NU 16… / U… = 20 °CMinimum motor flow:NU 5... / NU 7... = 0.16 m/sNU 611 = 0.1 - 0.5 m/sNU 811 = 0.5 m/sNU 801 / NU 9... / NU 12… / NU

Giá: Liên hệ

Design

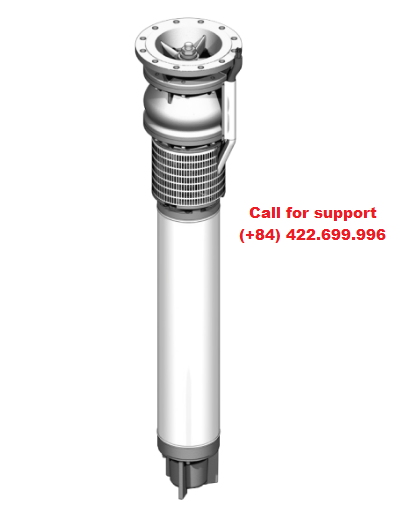

Multistage 10...24” submersible pump in sectional construction for vertical and horizontal installation

Application

For drinking water supply / general water supply from boreholes and rainwater storage tanksProcess water supplyMunicipal water supplySprinkling and irrigationPressure boostingPumping water in industrial applications and for water controlUtilisation of geothermal energyUtilisation in offshore areas

Type key

Example:	Wilo-EMU K 127.1-7 + NU 122-2/100
Hydraulics:	K 127.1-7
K127	Hydraulics
1	High-stage material version
7	Number of hydraulic stages

Motor:	NU 122-2/100
NU	Submersible motor (NU…, U…)
122	Size (5… , 6… = 6"; 7…, 8… = 8"; 9… = 10"; 12… = 12"; 16… = 16"; 21… = 21")
2	Number of poles
100	Package length

Special features/product advantages

Energy-efficient hydraulic systems via customizable hydraulics at the desired duty pointDrinking water version with ACS approvalMotors with sheath current cooling (CoolAct technology) for high power densitiesEasy maintenance, rewindable motorsOptional Ceram CT coating for increasing efficiency

Equipment/function

Multistage submersible-motor pump with radial or semi-axial impellersHydraulics and motor freely configurable according to power requirementsNon-return valve can be integrated (depending on type)Three-phase motor for direct or star-delta startingHermetically cast motorsRewindable motors
