  • Wilo-Economy MHIL

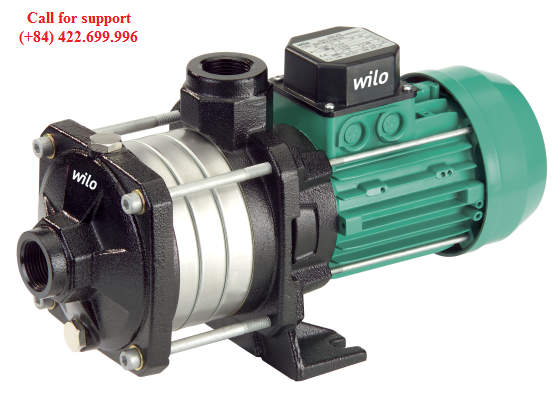

Wilo-Economy MHIL

  • - Lưu lượng max: 13 m3/h
  • - Cột áp max: 65m
  • - Nhiệt độ chất lỏng: -15 to +90 °C

    • Giá: Liên hê
    Design
    Non-self-priming multistage pump
    Application
    Water supply and pressure boostingCommerce and industryWashing and spraying systemsRainwater utilisationCooling and cold water circuits
    Type key
    Example: MHIL 302N-E-3-400-50-2
    MHIL Multistage horizontal high-pressure centrifugal pump
    3 Volume flow in m3/h
    02 Number of impellers
    N IE2 motor
    E Type of gasket
    E = EPDM
    V = FKM (Viton)
    3 1 = 1~ (single-phase AC)
    3 = 3~ (three-phase AC)
    400 Connection voltage in V
    50 Frequency in Hz
    2 Number of poles
