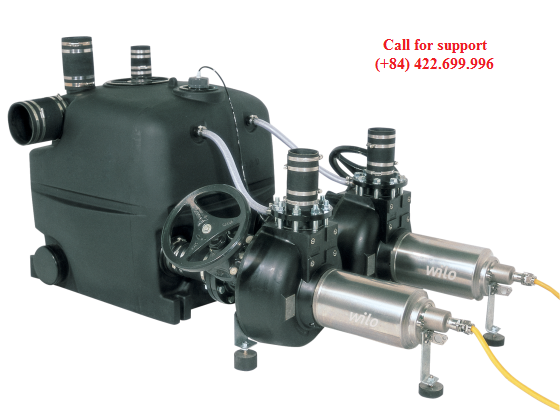

  • Wilo-DrainLift XXL

Wilo-DrainLift XXL

  • - Lưu lượng max: 140 m3/h
  • - Cột áp max: 21 m
  • - Nhiệt độ chất lỏng: 40 °C, for short periods up to 65 °C

    • Giá:Liên hệ


    Design
    Sewage lifting unit as double-pump system with two separate, dry-mounted pumps
    Type key
    Example: Wilo-DrainLift XXL 1080-2/8.4
    XXL Sewage lifting unit for large objects
    10 10 = discharge port DN 100
    8 = discharge port DN 80
    80 80 = total volume 800 l
    40 = total volume 400 l
    2 Double-pump system
    /8.4 Power P2 per pump [kW]
    Special features/product advantages
    Flexible use through the use of one or two tanksOptimal tank drainage due to deep extraction by suctionOperational reliability via high performance range and reliable level recordingSuitable for continuous duty (S1) with the use of self-cooling motors
    Materials
    Motor housing: stainless steel 1.4404 (AISI 316L)Hydraulics: PUR plasticTank: PE plastic
    Technical data
    Mains connection 3~400 V, 50 HzPower consumption P1 from 2.3 to 10.0 kW, depending on typeCable length from system to switchgear 10 mOperating mode S1, S3Fluid temperature max. 40 °C, for short periods up to 65 °CAmbient temperature max. 40 °CFree ball passage 78 mm to 95 mm, depending on typePressure port DN 80 or DN 100, depending on typeInlet connection 3 x DN 100/150, 1 x DN 100Ventilation connection DN 70 mmMin. suction head (installation level to middle of inlet) 700 mmProtection class (without switchgear) IP 68Gross tank volume 400/800 lSwitching volume 200/400 l
