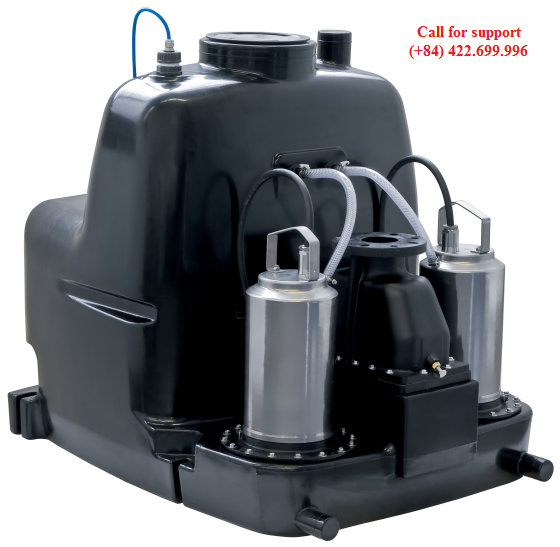

Wilo-DrainLift XL

- Lưu lượng max: 40 m3/h

- Cột áp max: 22vm

- Nhiệt độ chất lỏng: 40 °C, for short periods up to 60 °C

Giá:Liên hệ

Design

Sewage lifting unit as double-pump system

Type key

Example:	Wilo-DrainLift XL 2/25 (3~)
XL2	Double-pump system
/25	Max. delivery head [m]
(3~)	3~: Three-phase version

Special features/product advantages

Flexible thanks to a height-adjustable and swivel-capable inlet connectionEasy to use thanks to built-in switchgearIntegrated non-return valveOperational reliability via high switching volumes and reliable level recordingSuitable for continuous duty (S1) with the use of self-cooling motors

Materials

Motor housing: Stainless steel 1.4404 (AISI 316L)Hydraulics: PE/PUR plasticTank: PE plastic

Technical data

Mains connection 3~400 V, 50 HzPower consumption P1 from 3 to 5.3 kW, depending on typeCable length from system to switchgear 4 m / plug cable 1.5 mOperating mode S1 / S3 ‐ 60%Fluid temperature max. 40 °C, for short periods up to 60 °CAmbient temperature max. 40 °CFree ball passage 40 mmPressure port DN 80Inlet connection DN 100 / DN 150Ventilation connection DN 70Min. suction head (installation level to middle of inlet) 700 mmProtection class (without switchgear) IP 67Gross tank volume 380 lSwitching volume 260 l
