  • Wilo-DrainLift S

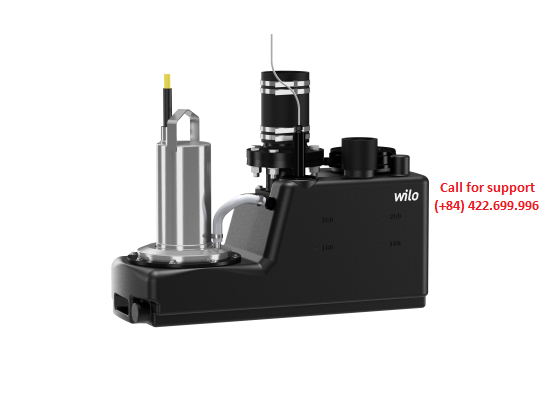

Wilo-DrainLift S

  • - Lưu lượng max: 35 m3/h
  • - Cột áp max: 6m
  • - Nhiệt độ chất lỏng: 3…40 °C, short-term 60 °C

    • Giá:Liên hệ
    Design
    Compact sewage lifting unit as single pump system
    Type key
    Example: DrainLift S 1/6T-RV
    S Size
    1 Number of integrated pumps
    6 Max. delivery head in m
    T Mains connection version:
    M = 1~230 V
    T = 3~400 V
    RV Pressure connection version
    without = no non-return valve
    RV = with non-return valve
    Special features/product advantages
    Space-saving installationEasy to install thanks to an integrated non-return valve (type “RV”)Flexible due to free selection of inletsReduced residual water volume
    Materials
    Tank: PE plasticMotor housing: stainless steel 1.4404 (AISI 316L)Hydraulic housing: PE/PUR plasticImpeller: PUR plastic
