  • Wilo-BAC

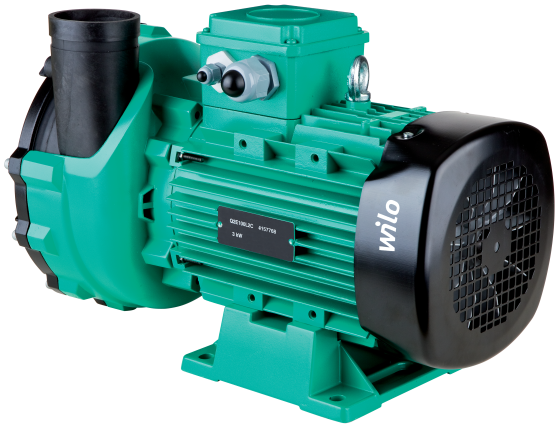

Wilo-BAC

  • - Lưu lượng max: 80 m3/h
  • - Cột áp max: 25m
  • - Nhiệt độ chất lỏng: -15 °C to +60 °C

    • Giá: Liên hệ
    Design
    Glanded pump in monobloc design with screwed connection or Victaulic connection
    Application
    For pumping of cooling water, cold water, water-glycol mixtures and other fluids without abrasive substances.
    Type key
    Example BAC 40/126-1.5/2-S
    BAC Monobloc pump for cooling and air-conditioning applications
    40 Pipe connection (pressure port)
    126 Impeller diameter
    1.5 Rated motor power P2 in kW
    2 Number of poles
    S Screwed connection
    R Victaulic connection
    Special features/product advantages
    Reduced life-cycle costs through optimised efficiency levelsPump housing in plastic designVersion with Victaulic or threaded connection (BAC 70/135... with Victaulic connection only)
