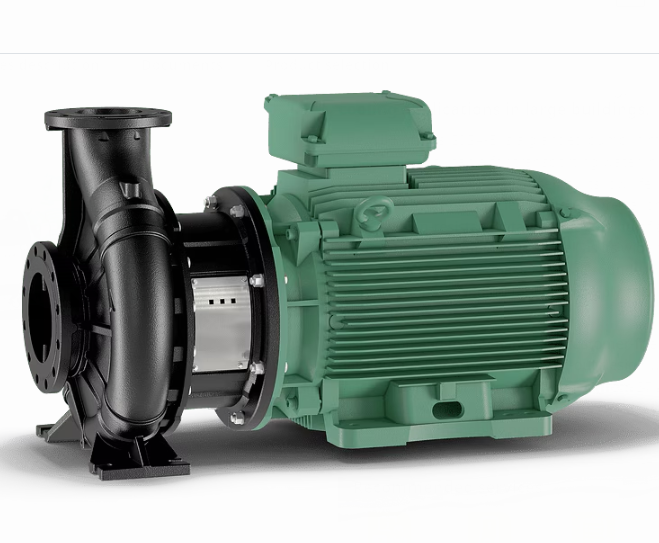

Atmos GIGA-B

  • - Lưu lượng max: 400 m3/h
  • - Cột áp max: 110m
  • - Nhiệt độ chất lỏng: -20 °C to +140 °C

    • Giá: Liên hệ

    Design
    Glanded pump in block design with flange connection

    Application
    For pumping heating water (in accordance with VDI 2035), water-glycol mixtures, cooling water and cold water without abrasive substances in heating, cold water and cooling water systems.


    Design type

    Glanded pump in monobloc design with flange connection

    Application

    For pumping heating water (in accordance with VDI 2035), water-glycol mixtures, cooling water and chilled water without abrasive substances in heating, chilled water and cooling water systems.

    Typekey

    Example

    BL 40/160-4/2

    BL

    Monobloc pump

    40

    Nominal diameter DN of the pipe connection (pressure port)

    160

    Nominal impeller diameter

    4

    Rated motor power P2 in kW

    2

    number of poles

    Technical data

    • Permissible temperature range of -20 °C to +140 °C
    • Mechanical seal for pumping water up to Tmax = +140 °C. Up to T ≤ +40 °C, a glycol admixture of 20 % to 40 % by volume is permissible. An alternative mechanical seal must be provided for water-glycol mixtures with a glycol content of > 40% to max. 50% by volume and a fluid temperature of > +40 °C to max. +120 °C or other fluids that differ from water. When using water-glycol mixtures, the use of an S1 variant with a corresponding mechanical seal is generally recommended.
    • Mains connection 3~400 V, 50 Hz (others on request)
    • IP rating IP55
    • Nominal diameter DN 32 to DN 150
    • Max. operating pressure 16 bar (optionally 25 bar on request)

    Materials

    • Pump housing and lantern: Standard: EN-GJL-250; optional: Spheroidal cast iron EN-GJS-400-18-LT (depending on type)
    • Impeller: Standard: EN-GJL-200; special version: Bronze CuSn 10 stainless steel 1.4408
    • Shaft: 1.4122
    • Mechanical seal: AQEGG; other mechanical seals on request

    Construction

    Single-stage low-pressure centrifugal pump in block design, with axial suction port and radially arranged pressure port with

    • Mechanical seal
    • Flange connection with pressure measuring connection R 1/8
    • Lantern
    • Coupling
    • IEC standard motor

    Scope of delivery

    • Pump
    • Installation and operating instructions

    Options

    • …-L1 variant with bronze impeller (at additional charge)
    • …-L4 variant with stainless steel impeller (at additional charge)
    • ...-P6 variant with back pull-out design and cartridge mechanical seal
    • …-H1 variant with housing made of ductile cast iron on request
    • ...-P4 variant for max. operating pressure of 25 bar on request
    • ...-P2 variant: Drinking water version on request
    • Other voltages and frequencies as well as ATEX approval on request

    Accessories

    • Bases (pump housing and motor) for installation on a base
    • PTC thermistor sensor, PTC thermistor tripping relay
    • Special motors
    • Special mechanical seals
    • SC-HVAC, CC-HVAC control systems and switchgears
